145 MHz pagers
Home Page Up DDAMTEK filters Digital TV Spectra MMDVM Repeater Levels Using DSD+ 1.09 GHz filters 145 MHz pagers



145 MHz interference - the problem

The interference as seen on a nearby antenna - on two frequencies around 138 and 153 MHz, each containing multiple interfering frequencies!

The 138 MHz group:

The 153 MHz group:



145 MHz interference - a solution

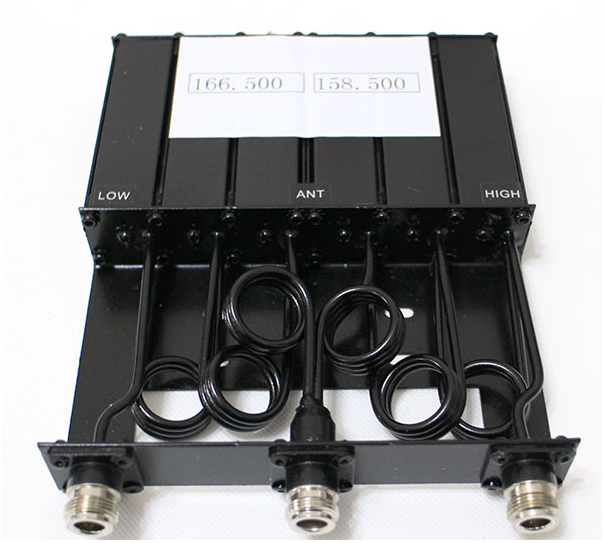

144-432 duplexer MX-72N eBay duplexer


144 MHz

<==> 6-cavity filter
used end-to-end
<==>

144MHz

Antenna <==>


Duplexer
e.g. MX-72N


    Duplexer <==> Radio

    432 MHz

<=== ================= ===>

432 MHz


Filter response end-to-end - rejection notches

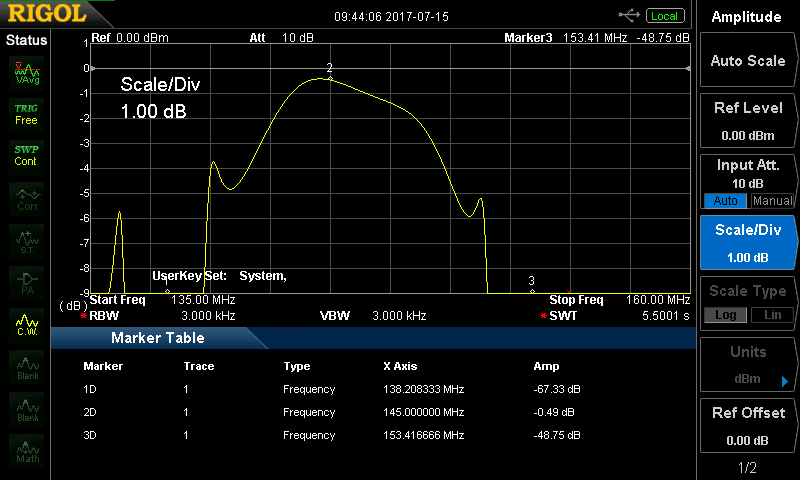

Filter response - passband loss



At least I learnt a little more about the facilities in the RIGOL DSA815/TG spectrum analyser!
