Edinburgh EUMETCast Basic Service Throughput

Ayecka SR1 IP receiver #1 - unfiltered by TelliCast channel selection
	Ayecka SR1 Traffic port output 8PSK 3/5 & 16APSK 2/3 MODCODs Both BAS and HVS-1 data
PC Network throughput - filtered by TelliCast channel selection
	Win-10/64 PC Alta - RX and process Ayecka SR1 #1, TelliCast 2.14.5 Intel i5-760, 8 GB MSG-3, MSG-4 RSS, free DWDSAT EARS-AVHRR & Metop-A/B AVHRR
	Win-10/64 PC Harstad - RX only Ayecka SR1 #1, TelliCast 2.14.5 Intel i5-4460, 8 GB MSG-3, MSG-4 RSS, free DWDSAT EARS-AVHRR & Metop-A/B AVHRR

Edinburgh EUMETCast High Volume Service - 1

Ayecka SR1 IP receiver #2 I/O - unfiltered by channel selection
	Ayecka SR1 #2 Traffic port output 8PSK 3/5 & 16APSK 2/3 MODCODs BAS & HVS-1 PIDs: 100 500 600 601 Both BAS & HVS-1 data
PC network throughput - filtered by TelliCast channel selection - all channels
	General purpose PC Kiruna Ayecka SR1 #2, TelliCast 2.14.5 Intel i7-4400K, 16 GB Windows-10/64 Pro HVS-1 data RX & process

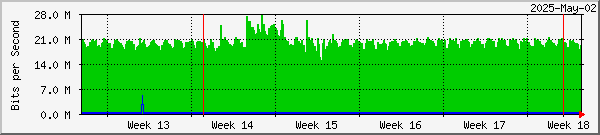

	PC Lund HVS-1 data RX

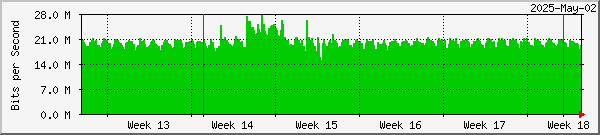

	PC Oslo HVS-1 data RX

Edinburgh EUMETCast High Volume Service - 2

TBS6903 PCie card in PC Lund- unfiltered by channel selection
	BDADataEx 1.1.4.1409 TAP adapter output 16APSK 2/3 MODCOD All PIDs (8192)
Ayecka SR1 IP receiver #3 I/O - unfiltered by channel selection
	Ayecka SR1 #3 Traffic port output 16APSK 2/3 MODCOD HVS-2 PID: 610
	Ayecka SR1 #3 Traffic port input
PC network I/O - unfiltered by channel selection
	PC Oslo Ayecka SR1 #3, TelliCast 2.14.7 i7-10700KF, 8-core, 32 GB Windows-11/64 Pro All data, no processing yet

Other periods: day week month year

This data is taken from PCs fed by Ayecka SR1 IP and TBS receivers.  The RF feeds are shown in red.  The antenna is pointed to the EUTELSAT 10A satellite at 10° E, to change to EUTELSAT 10B in July-2023.  Readings are taken every five minutes, and X-axis times are in UTC.  From late September 2017 the main RF feed has been changed to have a 4-way splitter - there's enough signal to allow this, otherwise an in-line amplifier could have been added.  The four outputs are used to feed the three main receivers.  Output two from the LNB is used for BAS/HVS-1, three is used for HVS-2, and output four allows direct access to the LNB for polarisation tests, which would otherwise interfere with routine reception.

Multiple receive PCs are fed from the Traffic LAN ports of the Ayecka SR 1 IP receivers on a private LANs (192.168.10.x/20.x) via GS605 Netgear switches, with 1 Gbps network cards added to the receiver PCs.  An Edimax USB2.0-Ethernet adapter is an alternative because of the need to use USB or better drivers.  Ayecka SR1 #2 receiver takes both BAS and HVS-1.  BAS is received by PC Oslo.  HVS-1 is received and processed by PC Kiruna, and received by PC Lund, processed by PC Penguin..  From Feb-2017 PC Lund monitors HVS-1 & HVS-2 with a single-cable TBS6903 dual-tuner PCIe card, but this arrangement had to be abandoned when HVS-2 was switched to a transponder with a different polarisation in late 2022..

The Ayecka SR1 Management ports are connected to the existing 192.168.0.x house LAN, through which management access is possible from any local PC.
