Router & Cable Modem on Virgin Media broadband

Router data throughput
Hub-3 350 Mbps down, 35 Mbps up
Upstream to CM (red line - max upload)

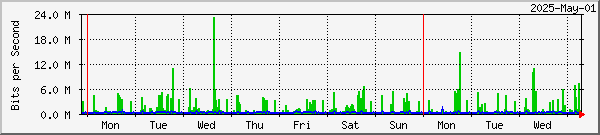

Downstream from CM
Router data upload to cable modem

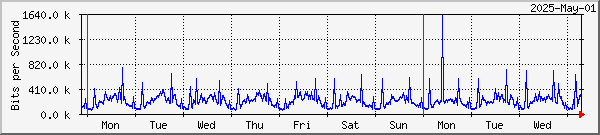

Upstream to CM in more detail
UKHost4u Web server connection
Upload time to server
Unzip time on server
Note the log vertical axis!
15-minute updates
(0 => no connection, or server down)

Router internals

Netgear R8000 router running DD-WRT

Router memory used
256 MB available
Router CPU usage

Other periods: day week month year

Configuration

Network
configuration
2022-Dec-15



16-port
switch



Windows PCs
Raspberry Pi cards



Router

 NETGEAR
R8000

 Unused Wi-Fi





LeoNTP
time-server

250/25 Mbps
Virgin Media
 Cable Internet

Virgin Media
Hub 3.0
 modem mode

Arris
VMDG505
TG2492LG-VM

Arris
TG2492
Ayecka #1  BAS
Ayecka #3  HVS-2
management ports
8-port
switch

Windows PCs
Raspberry Pi cards
 Wi-Fi access point
2.4 & 5  GHz
Ayecka #2  HVS-1
management port
